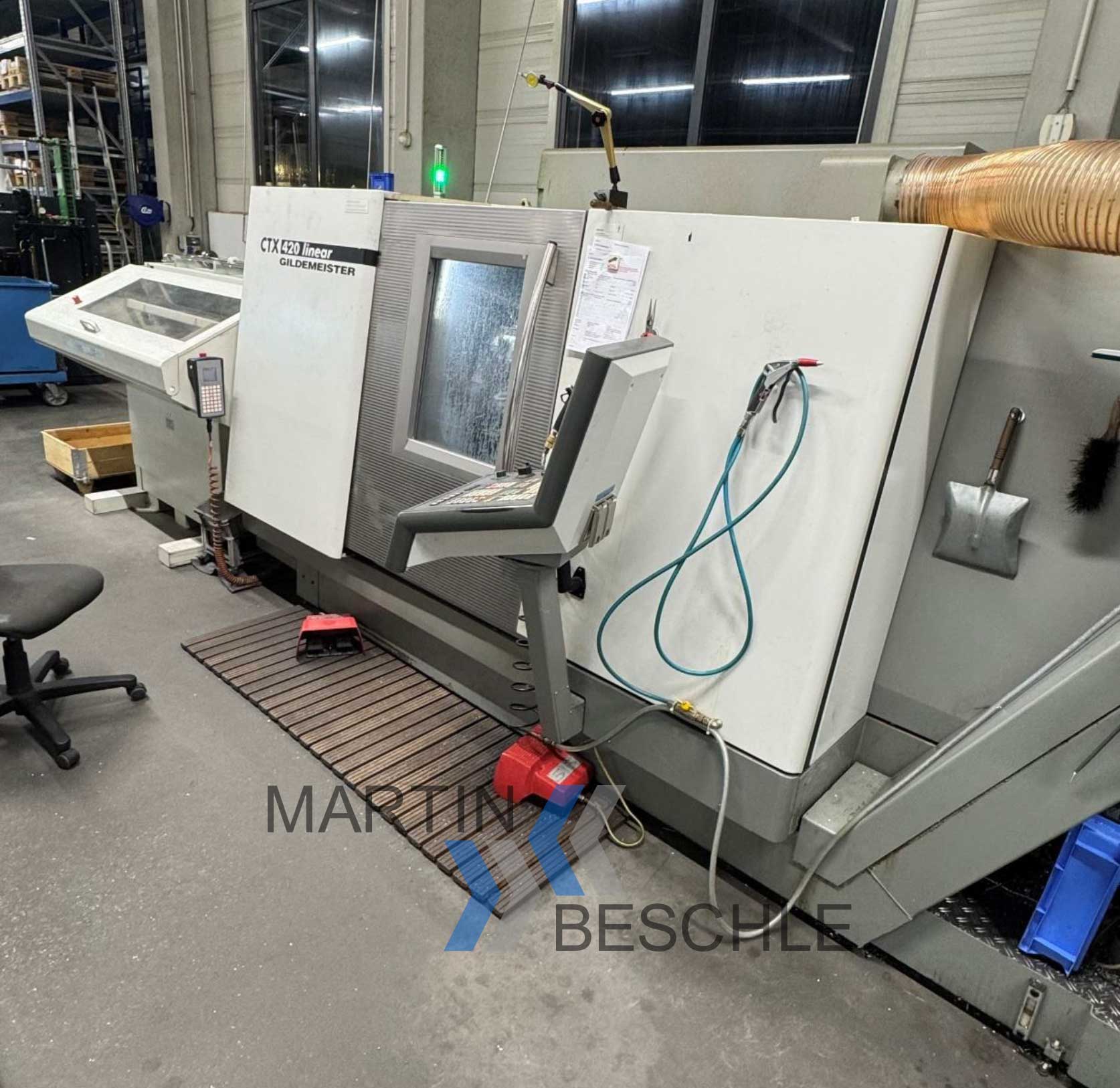

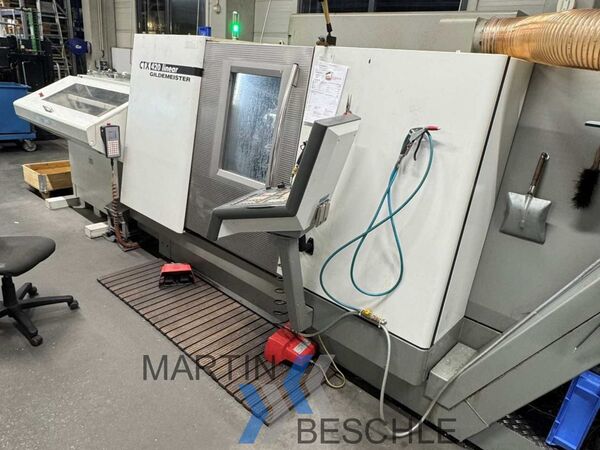

CNC lathe GILDEMEISTER CTX 420 linear

With Siemens 840 D powerline control system
Year of manufacture: 2006
Max. turning diameter: 324 mm
Max. turning length: 600 mm
Max. swing diameter: 680 mm
Spindle bore: 79 mm
Max. spindle speed: 4500 rpm

With the following accessories:

Sliding guard with interior lighting
12-station turret with 12 driven stations
Y axis, C axis
Tool measuring device
Parts removal device
3-jaw chuck, hydraulic, 0–210 mm, with foot switch
Hydraulic collet chuck, Hainbuch
IRCO Breuning RBK 10012 bar feeder
Signal lamp
Tailstock with quill
Chip conveyor
Oil mist extraction
Coolant device with IKZ and belt filter system
Operating instructions
