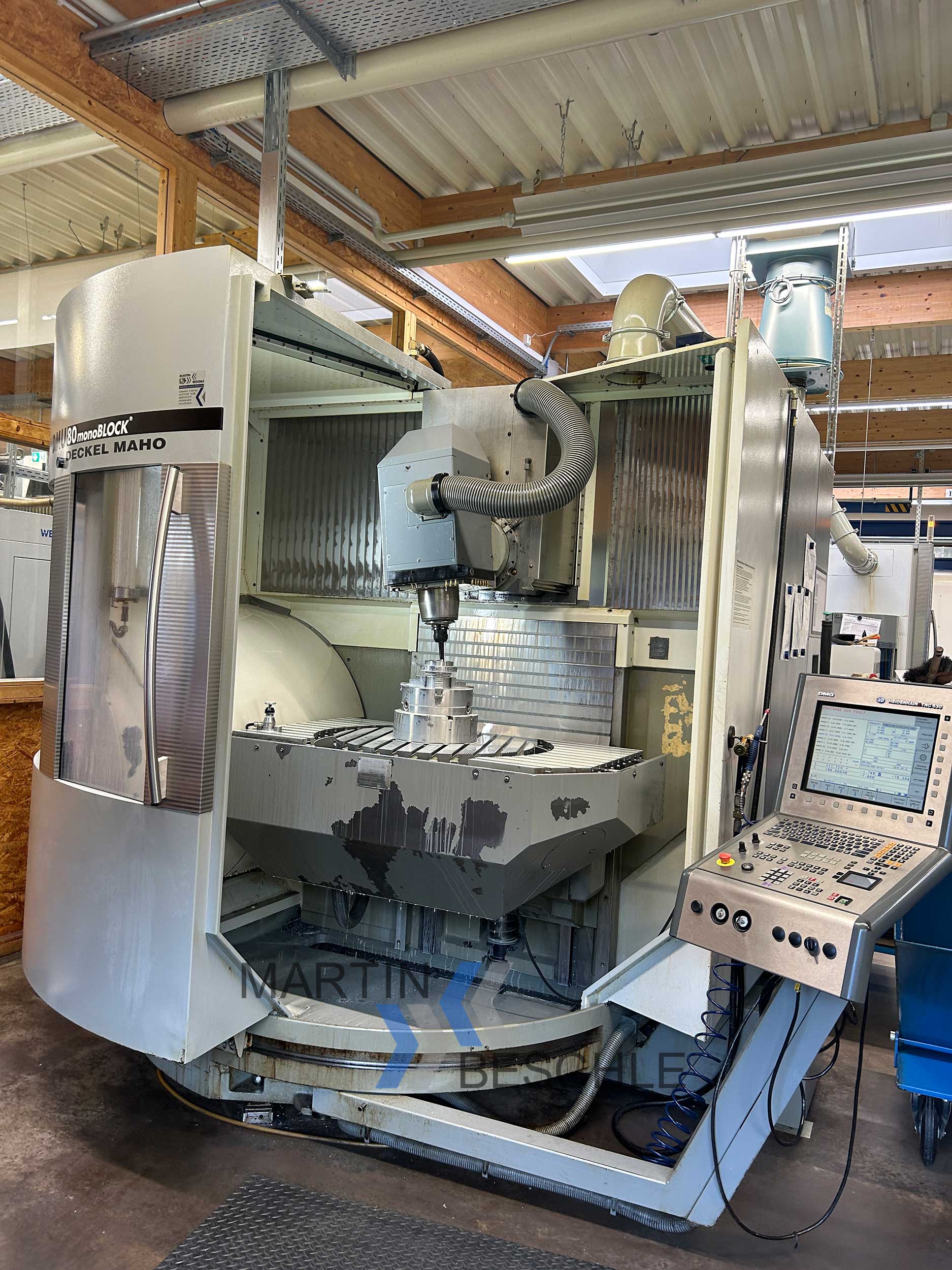

CNC universal milling & drilling machine DECKEL MAHO DMU 80 monoBlock

sold

With Heidenhain iTNC 530 path control
Year of construction: 2005
Travels: X 980 Y 630 Z 630
Speed ​​range: 20 - 12,000 rpm continuously (SK 40)

With the following accessories:

Rigid angle table 1250 mm x 700 mm clamping surface
NC rotary table integrated in a rigid table 0 700 mm
Controlled NC swivel milling head (B axis)
Electronic handwheel
3 D measuring probe Heidenhain TS 641
Vertical tool changer with 32 magazine locations (SK 40)
Fully protective cabin with sliding doors and interior lighting
Operating mode 3 + 4
Chip conveyor
Coolant device
3-piece height-adjustable machine shoes
Control cabinet cooling unit (Rittal)
Transport device
Operating instructions



DECKEL MAHO DMU 80 monoBlock
